Item # AC566
15" 2-WAY FULL-RANGE SYSTEM
Click image to enlarge
Item # AC566
15" 2-WAY FULL-RANGE SYSTEM
- UM: EA
- Brand: JBL / HARMAN

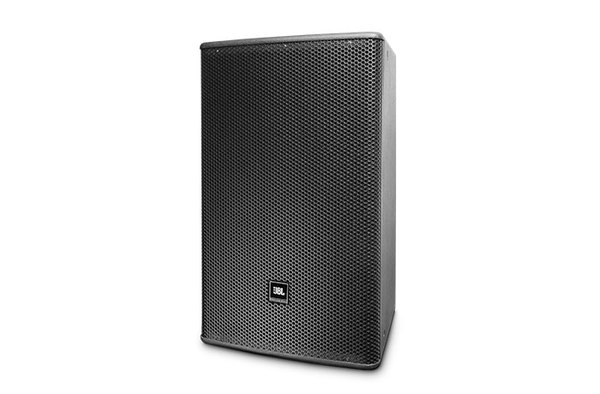

AC566 is a compact 2-way full-range loudspeaker system featuring a 384 mm (15 in) low-frequency driver and a 25 mm (1 in) exit, 35 mm (1.5 in) voice-coil compression driver. The integrated horn provides coverage of 60° by 60° in both vertical and horizontal planes. The system employs high-slope passive crossovers to reduce band overlap and to maintain controlled off-axis response. The enclosure includes M10 threaded suspension points and four threaded inserts on the rear panel compatible with MultiMount or equivalent mounting hardware. The AC566 is part of the AE Application Engineered Series designed for fixed installation applications.
- 15mm robust enclosure with black textured finish
- 384 mm (15 in) LF transducer
- 60° x 60° waveguide
- 25 mm (1 in) exit compression driver with 35 mm (1.5 in) diaphragm
- Dual Neutrik NL4 connectors and screw terminals
- Multiple attachment points for flexibility
| Frequency Range (-10dB) | 60 Hz - 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 75 Hz - 18 kHz |
| System Sensitivity (1W @ 1m) | 98 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL (1m) | 122 dB (128 dB peak) |
| System Power Rating | 350W (1400W peak), 2 hrs (AES rated), 250W/500W/1000W (Continuous/Program/Peak) (IEC rated) |
| Coverage Pattern | 60° x 60° (H x V) |
| Crossover | 1.5 kHz |
| LF Driver | 1 x 15" woofer with 66 mm voice-coil |
| HF Driver | 1 x 2408H-2 driver with 25 mm exit/38 mm voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals |
| Enclosure | 15 mm multi-ply hardwood plywood |
| Grille | Powder coated, 1.5 mm perforated steel with acoustically transparent black foam backing |
| Finish | Textured black paint finish |
| Suspension Attachment | 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket, wall-mount bracket |
| Crossover Modes | Passive |
| Nominal LF Driver Impedance | 8 ohms |
| Nominal HF Driver Impedance | 8 ohms |
