Item # AC16

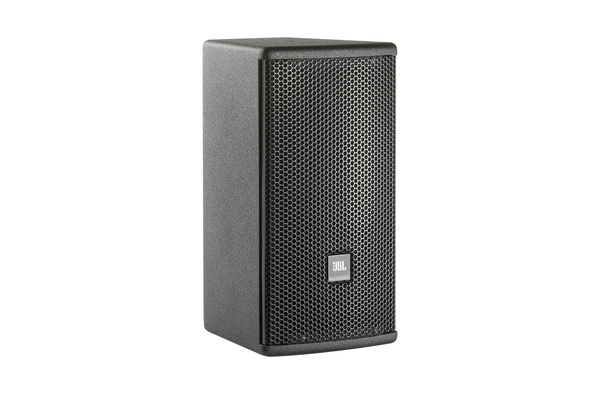

ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 6.5" LF. 90° X 90° COVERAGE, PASSIVE. PRICED AS EACH/BLACK
Click image to enlarge
Item # AC16
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 6.5" LF. 90° X 90° COVERAGE, PASSIVE. PRICED AS EACH/BLACK
- UM: EA
- Estimated Weight: 18.0
- Brand: JBL / HARMAN

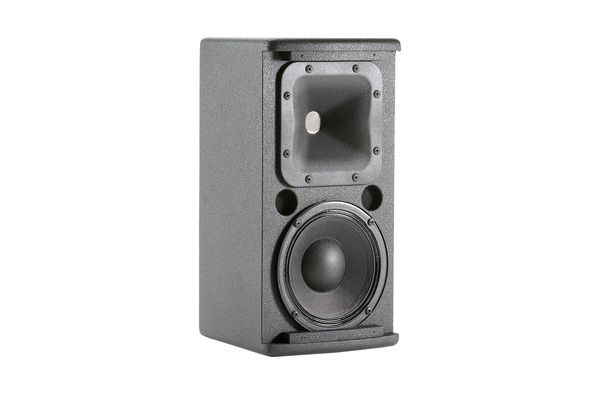

The AC16 is a 2-way loudspeaker system featuring a 6-inch low-frequency driver and a 1-inch exit compression driver for high-frequency reproduction. The design includes JBL's Progressive Transition™ Rotatable Waveguide, which allows selection between two coverage patterns: 90° x 50° or 120° x 60°. This model is part of the AE Compact series and supports applications requiring compact form factor and configurable dispersion characteristics.
- 1” exit compression driver with 90° x 90° coverage
- 165 mm (6.5 in) low frequency transducer
- Ultra compact enclosure
- 320W program power
- Dual Neutrik NL4 connectors plus screw terminal
- Attachment points for optional U-bracket, OmniMount type bracket, and stand mount accessory
| Frequency Range | 55 Hz - 20 kHz |
|---|---|
| Frequency Response | 65 Hz - 18 kHz |
| System Power Rating | 250 W (AES), 160 W / 320 W / 640 W (Continuous/Program/Peak, IEC) |
| Nominal Impedance | 16ohms |
| Coverage Pattern | 90° x 90° |
| Crossover Modes | Passive |
| Maximum SPL (1m) | 110 dB |
| System Sensitivity (1W @ 1m) | 90 dB SPL |
| LF Driver | 1 x JBL 226J, 165 mm SFG driver with 50 mm edge wound voice coil |
| Nominal LF Driver Impedance | 16ohms |
| HF Driver | 1 x 2414H 25 mm exit compression driver, 25 mm voice coil |
| Enclosure | Multi-ply hardwood plywood |
| Suspension Attachment | 5 x M8 points; 4 x M6 rear for mounts |
| Environmental | Mil-Std 810; IPx3 per IEC529 |
