Item # AA240G
6-INPUT 240W MIXER AMPLIFIER W/GLOBAL POWER SUPPLY 25V, 70V, 100V, 8OHM / INCLUDES RACK KIT
Click image to enlarge
Item # AA240G
6-INPUT 240W MIXER AMPLIFIER W/GLOBAL POWER SUPPLY 25V, 70V, 100V, 8OHM / INCLUDES RACK KIT
- UM: EA
- Estimated Weight: 20.0
- Brand: ATLAS IED

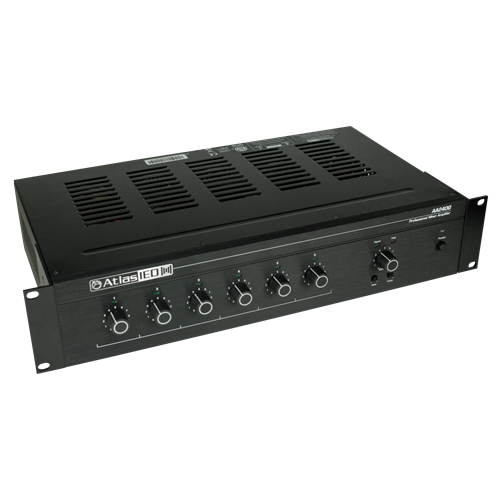

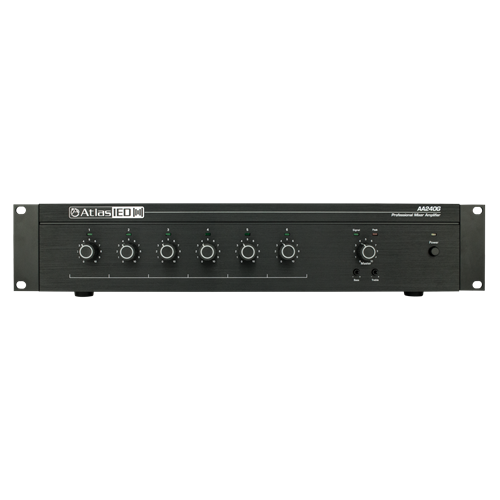

The AtlasIED AA240G is a robust 6-input, 240-watt mixer amplifier engineered for commercial sound reinforcement and paging systems. Designed for flexibility and reliability, the AA240G supports 70V, 100V, and 8O speaker systems, making it ideal for distributed audio in schools, offices, retail stores, and small-medium house of worship rooms. This model features 5 mic/line inputs and 1 stereo RCA line input, each with individual gain control and phantom power where applicable. An integrated remote muting function and pre-out/power-in patch points offer advanced integration options. The AA240G also includes bass and treble controls, VCA remote volume control capability, and an extensive range of protection circuitry for stable, long-term operation. Built with a rugged 2RU chassis, the AA240G delivers the power and control needed for professional AV installations.
The output power of output power of the AA240G will match nicely with AtlasIED FAP, SM, SD, and GD Series loudspeakers. 25V, 70.7V, 100V, and 8O outputs are provided
The output power of output power of the AA240G will match nicely with AtlasIED FAP, SM, SD, and GD Series loudspeakers. 25V, 70.7V, 100V, and 8O outputs are provided
Features:
- 240 Watt 6 Channel Mixer Amplifier
- 4 Mic/Line Inputs with Phantom On/Off per Mic and 2 Stereo Summing AUX Inputs
- Bridge In/Out Circuit with Balanced Link / Internal Relay to Engage Circuit is Perfect for Small Room Combining Systems Eliminating the Need for External Electronics
- Pre Out / Power Amp In for Patching External Processors
- Remote or VOX Mute Capabilities
- Special Low Cut Filter is 6dBu/octave at 400Hz and also Bypasses Front Panel Bass Control to Allow Use with Paging Horns like APX40TN and AP-15T
- VCA Control Assignable to Input 6 Line Level (BGM) Input or Global for the Mix Bus
- Zone 2 MOH Out from CH6 Line Source
- UL60065 Listed
| Frequency Response | 50Hz - 20kHz |
|---|---|
| Power Output | 240-Watts 8O/25V/70.7V/100V |
| Connector Type | Phoenix and RCA |
| Output Power | 240 Watts |
| Rack Units | 1 |
| Height | 3 1/2" (9 cm) |
| Width | 17" (43.1 cm) |
| Depth | 9 1/2" (24.1 cm) |
| Shipping Weight | 16.5 lbs (7.5 kgs) |
| Safety Listed | UL60065 Standard, CE |
| Voltage Compatibility | 100V - 240V |
| Warranty Period | 36 months from date of purchase |
