Item # 96-8-7
8" FLANGED ROUND ENCLOSURE 7 INCH DEEP W/FIBERGLASS
Click image to enlarge
Item # 96-8-7
8" FLANGED ROUND ENCLOSURE 7 INCH DEEP W/FIBERGLASS
- UM: EA
- Estimated Weight: 14.0
- Brand: ATLAS IED

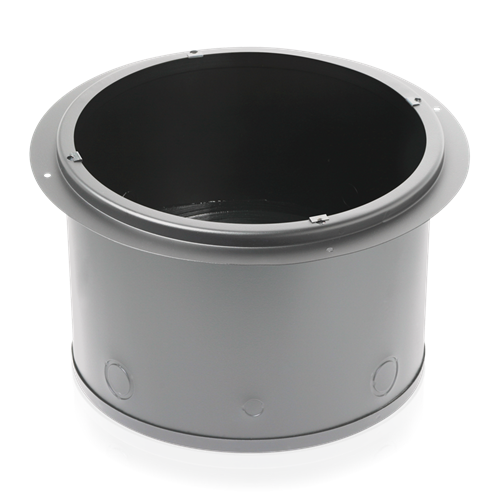

AtlasIED 96-8-7 is a cost-efficient cylindrical protective enclosure that mounts a variety of AtlasIED grilles. Unit features welded CRS construction with a painted finish. Undercoated and patch-jute lined to eliminate mechanical and acoustical resonances.
Features:
- Generous Acoustic Fiberglass Lining Improves Low Frequency Response to Achieve Fuller, Richer Bass
- Loudspeaker Enclosures with Greater Cubic Capacity Provide Improved Loading to Enhance High-Quality Sound Systems
- Mounting Holes Located on the Internal Plaster Flange to Allow Easy and Convenient Installation
- Round, Recessed, Model to Meet Professional Sound Installation Requirements
| Depth | 7" (17.78 cm) |
|---|---|
| Diameter | 11 7/8" (30.16 cm) |
| Shipping Weight | 4.67 lbs (2.12 kgs) |
| Mounts Baffle | 51-8, 60-8(W), 61-8W, 62-8, 63-8, 67-8(W), 68-8W, 170-8, G22-8, M222(W), P900, VP-60R, U51-8, U61-8W, U62-8, UG22-8, UM222W |
| Safety Listed | 1480 |
| Warranty Period | 60 months from date of purchase |
