Item # 840-89A

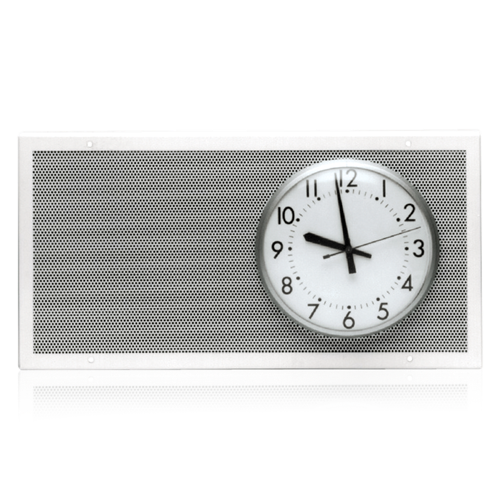

PERFORATED BAFFLE FOR 8" SPEAKER AND 8" OR 9 INCH ANALOG CLOCK (CLOCK BY OTHERS)
Item # 840-89A
PERFORATED BAFFLE FOR 8" SPEAKER AND 8" OR 9 INCH ANALOG CLOCK (CLOCK BY OTHERS)
- UM: EA
- Estimated Weight: 8.0
- Brand: ATLAS IED
Contemporary clock/speaker baffle assembly features a CRS baffle and trim ring mounted to an 18-gauge CRS panel with cutouts for mounting an 8" dia. speaker (order separately). The 830 Series mounts into position using a double-action torsion spring system to provide a hardware-free appearance. Models include a black gasket for concealed mounting of an 8" dia. (203mm) speaker and a universal clock mounting bracket for installation of almost any 8" or 9" dia. analog clock (by others). The panel, grille, and trim ring components are finished in a white epoxy. Assemblies can be recessed or surface mounted using 194 Series enclosures.
Features:
- Can be Recessed or Surface Mounted Using 195 Series Enclosures
- Mounts into Position Using a Double-Action Torsion Spring System to Provide a Hardware-Free Appearance
- Panel, Grille, and Trim Ring Components are Finished in a White Epoxy
| Clock Hole Size | 8 3/4" |
|---|---|
| Compatible Enclosures | 195-89, SM195-89 |
| Height | 13 11/16" (34.76625 cm) |
| Width | 26 3/4" (67.945 cm) |
| Shipping Weight | 4.00 lbs (1.81 kgs) |
| Warranty Period | 60 months from date of purchase |
