Item # 80-0186
xIO Bluetooth Black US: Dante I/O endpoint, Bluetooth media in, Bluetooth phone I/O, 4x4 Dante, PoE
Item # 80-0186
xIO Bluetooth Black US: Dante I/O endpoint, Bluetooth media in, Bluetooth phone I/O, 4x4 Dante, PoE
- UM: EA
- Estimated Weight: 1.0
- Brand: SYMETRIX

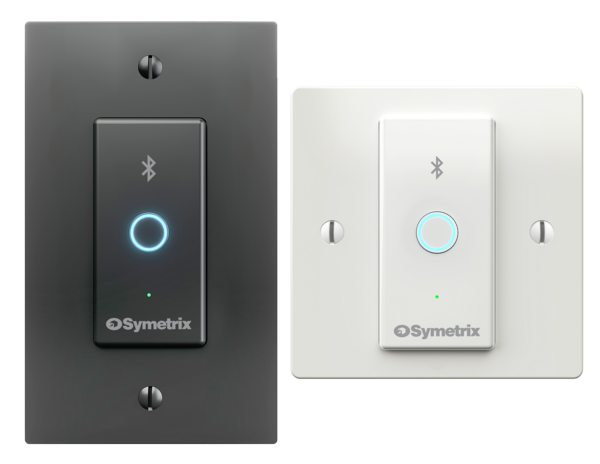

The Symetrix 80-0185 Dante Endpoint is a single-gang, Bluetooth 5.0 PoE audio interface designed for seamless wireless audio streaming in Dante™-enabled AV systems. Featuring high-quality, low-latency audio transmission, this wall-mounted endpoint allows users to pair smartphones, tablets, and laptops for direct Bluetooth audio integration into networked AV systems. With AES67 support, it offers flexible compatibility with professional audio infrastructures. The PoE-powered design ensures easy installation without additional power adapters, making it ideal for conference rooms, hospitality venues, classrooms, and corporate AV applications. The sleek black finish provides a discreet and professional look, ensuring aesthetic and functional wireless connectivity for modern AV systems.
xIO Bluetooth
- Single gang Bluetooth 5.0 PoE Dante endpoint
- Selectable Bluetooth modes: Media only, Phone only, Both
- PIN code Bluetooth security
- Selectable single or multiple memorized Bluetooth pairings
- LED blackout mode
- Powerful configuration from Composer with flexible control from Symetrix remotes, SymVue touchscreens panels, or user supplied devices
- Perfect for Hospitality, Education, House of Worship, Conferencing, or Residential use
- Available in US or EU single gang form factors and black or white finishes
- Supports standard single gang Decora faceplates
System Specifications
|
Specification |
Detail |
|
Display |
Blue LED: Pairing Status; Green LED: Device Status; Button: Pairing control |
|
Compatibility |
Symetrix Composer Series products |
|
Ethernet Cable |
Standard CAT5e or CAT6, maximum device-to-device length = 100 m |
|
Maximum Devices per System |
128 devices per Site File |
|
Specification |
Detail |
|
Space Required |
Single-gang US or Euro wall box; WHD: 5.62 in (14.28) x 4.5 in (11.43) x 1.2 in (3.05); Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
|
Electrical |
PoE IEEE 802.3af Class 0, 15 Watts maximum. No line voltage switching required. |
|
Ventilation |
Maximum recommended ambient operating temperature is 50 C / 122 F. Avoid prolonged exposure to direct sunlight or strong ultraviolet light. |
|
Shipping Weight |
1.00 lbs (0.454 kg) |
|
Certifications and Compliance |
UL/CSA/EN 62368-1; FCC 15.107:2021; FCC 15.109:2021; ICES003:2020; RoHS; EN 300 328 V2.2.2:2019; EN 301 489-1 v2.2.3:2019; EN 301 489-17 v3.2.4:2020; EN 55035; EN 55032 |
|
Form Factor |
Single-gang US or Euro wall mount |
