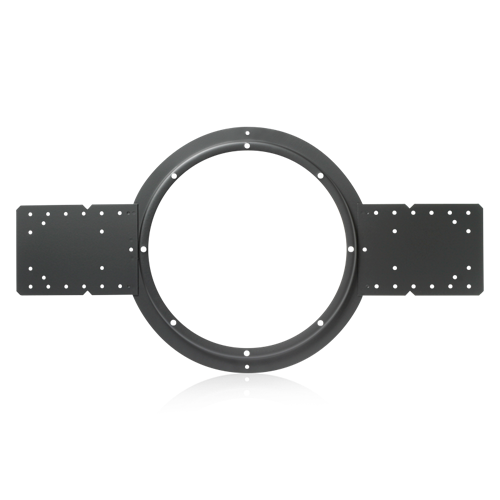

Item # 76-8E2
8" MOUNTING RING 24" STUDS
Click image to enlarge
Item # 76-8E2
8" MOUNTING RING 24" STUDS
- UM: EA
- Estimated Weight: 2.3
- Brand: ATLAS IED
Use Model 76-8(E2) for installing screw mount baffles for 8" speakers as well as 95 series enclosures for new construction drywall applications. Unit includes mounting ears to facilitate 16" or 24" OC stud mounting.Unit is constructed of 20 ga. CRS finished in textured epoxy, and includes four 8-32 J-Nuts.
Features:
- Suited for a Variety of Ceiling Constructions Including Drywall, Plaster, Conventional, Stud Ceiling, and Retrofit Applications
- Works with 8" Screw Baffles and 95 Series Enclosures (if "T"-nuts are Removed)
| Depth | 7/16" (1.11252 cm) |
|---|---|
| Diameter | 11 7/8" (30.1625 cm) |
| Shipping Weight | 1.30 lbs (0.59 kgs) |
| Mounts Baffle | 51-8, 60-8(W), 61-8W, 62-8(W), 63-8, 170-8, VP-60R, M222(W), P900 |
| Warranty Period | 12 months from date of purchase |
