Item # 607-15

19" WIDE OPENING STAND ALONE BASIC WALL CABINET W/ LOCKING FRONT DOOR - 7 RU

  • MAP: $433.99 / EA
  • List Price: $538.99 / EA
  • Usually ships in 3-7 days
  • Log in to see if custom discounts apply
607-15 19" WIDE OPENING STAND ALONE BASIC WALL CABINET W/ LOCKING FRONT DOOR - 7 RU
Click image to enlarge
607-15 19" WIDE OPENING STAND ALONE BASIC WALL CABINET W/ LOCKING FRONT DOOR - 7 RU

Item # 607-15

19" WIDE OPENING STAND ALONE BASIC WALL CABINET W/ LOCKING FRONT DOOR - 7 RU

  • UM : EA
  • Estimated Weight: 45.0
  • Brand: ATLAS IED

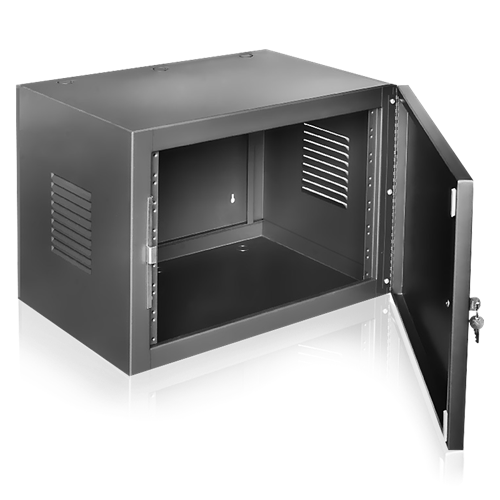

AtlasIED Model 607-15 is a surface mounting wall cabinet used for housing small electronic system installations including 19" wide amplifiers, tuners and associated communication controls for schools, churches, clubs and recreation facilities. The 607-15 has a vertical panel opening of 12 1/4" (311mm) and is constructed of 16-gauge CRS. Louvers on each side of the cabinet are provided for ventilation. The fixed 11-gauge CRS panel mounting rails are recessed 5/8" (16mm) for a "flush" look. Locking front door is standard. Panel-mounting screws (10-32 x 3/4") are provided for equipment panel and accessory mounting. Mounting rails are tapped 10-32 on EIA spacing. Three double 1/2" (13mm) and 3/4" (19mm) knockouts are provided on the top and bottom of the cabinet for wire entry. Four keyhole slots for wall hanging are provided on the back panel. The 607-15 is shipped completely assembled and is finished in (#962) black epoxy powder coat.

FEATURES

  • 10-32 Pan Head Screws for Panel Mounting
  • 16-Gauge CRS All Welded Construction with 11-Gauge CRS Fixed Tapped Mounting Rails
  • Completely Assembled
  • Convenient Pre-Punched Back Panel for Wall Mounting
  • Locking Front Door
  • Vents on Each Side

SPECIFICATIONS

RACK UNITS

7

HEIGHT

15 1/2" (39.37 cm)

WIDTH

22 5/16" (56.68 cm)

DEPTH

15 3/8" (39.05 cm)

USABLE DEPTH

14" (35.56 cm)

SHIPPING WEIGHT

45.00 lbs (20.41 kgs)
