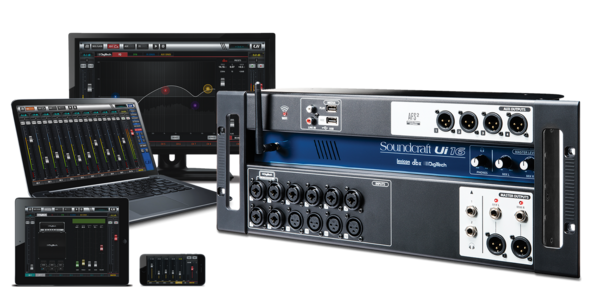

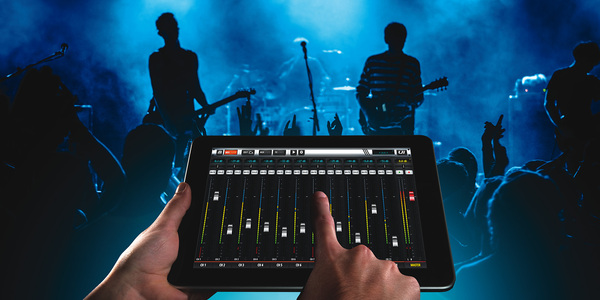

The Soundcraft Ui16 is a versatile digital mixer designed for remote-controlled operation via Wi-Fi-enabled devices such as tablets, PCs, and smartphones. Featuring 16 input channels, including 8 XLR combo jacks, 4 XLR mic/line inputs, and 2 Hi-Z inputs for instruments, the Ui16 provides professional-grade mixing capabilities in a compact format. It offers built-in Lexicon, dbx, and DigiTech signal processing, comprehensive EQ and dynamics controls, and multi-track USB recording. With cross-platform compatibility and integrated Wi-Fi, this mixer is perfect for live sound, small venues, houses of worship, and mobile production setups.

Both UI Series mixers offer 31-band graphic EQ, noise gate and compressor on all outputs, plus real-time frequency analyser (RTA) on inputs and outputs. Built in are three dedicated Lexicon FX busses: Reverb, Delay and Chorus. In addition, mixer controls include Subgroups, Mute groups and View groups, among others. The Ui Series mixers feature full Show/Snapshot recallability with channel recall safes. while security lockout features allow customization of device access to only specific functions and mixes if needed. Both mixers also offer independent network interfaces on board for simultaneous control by Wi-Fi and Ethernet, plus a floor-ready rugged chassis for live applications.

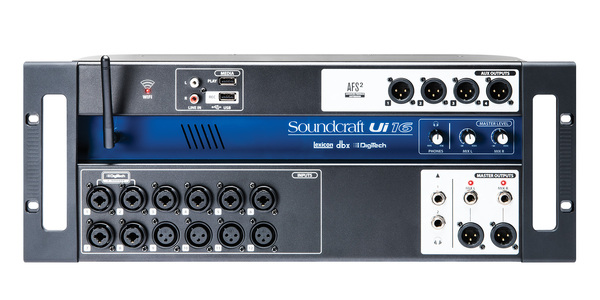

The Ui16 boasts eight XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi- Z/instrument inputs, as well as a stereo RCA line input. A 2-channel USB media player is included, along with four balanced XLR Aux outputs, two quarter-inch headphone outputs with level control, plus balanced stereo XLR and quarter-inch main outputs. Two-channel USB audio playback is compatible with MP3, WAV and AIFF formats, and 2-channel USB Record direct-to-memory devices functionality is possible as well.

Features

• Tablet/PC/Smartphone Controlled Digital Mixer

• Integrated Wi-Fi

• Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices

• Use up to 10 control devices (tablets, phones, PCs) simultaneously

• Legendary Harman Signal Processing from dbx, Digitech, and Lexicon

• Fully recallable and remote-controlled mic preamps

• 4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels

• 31-band Graphic EQ, Noise Gate and Compressor on all outputs

• Real-Time Frequency Analyser (RTA) on inputs and outputs

• 3 dedicated Lexicon FX effects processors: Reverb, Delay and Chorus

• Subgroups, Mute Groups, View Groups, and more mixer controls

• Show/Snapshot recall with channel safes and security lockout

• 2-channel USB audio playback and recording

• Password-protected Access limitation system

• Sync ID (multiple browser windows staying in channel Sync)
