Item # 414-15
WELDED & ASSEMBLED DESK TOP CABINET - 14 RU
Click image to enlarge
Item # 414-15
WELDED & ASSEMBLED DESK TOP CABINET - 14 RU
- UM: EA
- Estimated Weight: 52.0
- Brand: ATLAS IED

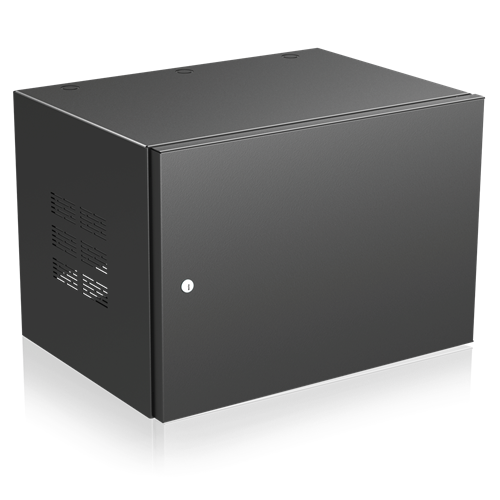

The Atlas 414-15 provides desk-top access to (19") control and monitor equipment.This model is constructed of 16-gauge CRS and includes one pair of mounting rails, tapped 10-32, hardware and wiring access below rear door or panel. The 414-15 includes locking rear door with spring-loaded hinge, side vents and optional front door (SFD414) with self-tapping screws. Inside (usable) dimensions are 17 3/4" W x 14 1/8" D.
Features:
- 11-Gauge CRS Tapped Mounting Rails
- 16-Gauge CRS Cabinet
- 5/8" - 5/8" - 1/2" EIA Standard Panel Mount Spacing
- Completely Assembled and All-Welded Construction
- Internal Louvers on Each Side
- Keyed Cylinder Lock on Rear Door
- Optional Front Surface Door Available with Right or Left-Hand Hinging Capability
- Spring-Loaded Hinge for Easy Removal of Rear Door
| Rack Units | 14 |
|---|---|
| Height | 27 3/4" (70.49 cm) |
| Width | 22 5/16" (56.68 cm) |
| Depth | 15 3/8" (39.05 cm) |
| Shipping Weight | 52.00 lbs (23.59 kgs) |
| Warranty Period | 60 months from date of purchase |
