Item # 24740.000.55
WIND-UP STAND(4000),RANGE OF USE: 67.52-157.48",INTEGRATED AUTOLOCK SYSTEM,LOAD CAPACITY:88.106 LBS
Item # 24740.000.55
WIND-UP STAND(4000),RANGE OF USE: 67.52-157.48",INTEGRATED AUTOLOCK SYSTEM,LOAD CAPACITY:88.106 LBS
- UM: EA
- Brand: KONIG & MEYER

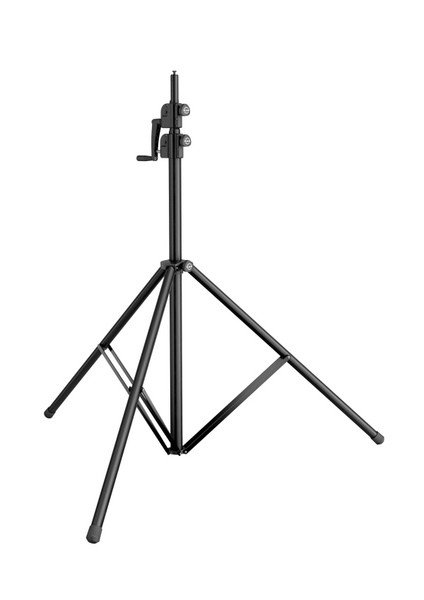

Professional patented light and speaker stand with an innovative dual crank mechanism. The 3-piece tube combination covers a range of use from 67.52 to 157.48" height. The load is raised and lowered in a user-friendly, safe and reliable way via two separate crank gears. The integrated »AutoLock« system prevents sudden lowering of the load by automatic locking. The crank can also be removed to prevent unauthorised use. Since no cables are used, the stand is completely maintenance-free. The focus of this robust stand is above all on stability and steadiness, so that a load capacity of 88.106 lbs is easily realised. The compact transport dimensions are 66.732 x 7.874 x 6.496" and the weight is around 31.278 lbs. The integrated M10 threaded bush can be used to mount additional crossbars or individual spotlights directly.
|
Base diameter: |
78.74 " |
|
EAN: |
4016842117079 |
|
Height: |
from 67.52 to 157.48" |
|
Height adjustment: |
hand crank with push-button system and locking screw |
|
Leg construction: |
tube legs with double cross braces |
|
Material: |
aluminum |
|
Max. load capacity (With centric loading, on a horizontal surface and without lateral forces (wind, shocks etc.)): |
88.106 lbs |
|
Number of legs: |
3 |
|
Product Category: |
Starline |
|
Rod combination: |
3-piece folding design |
|
Size when folded: |
66.732 x 7.874 x 6.496" |
|
Special features: |
steel extension tubes; push-button system and hand crank avoid uncontrolled reverse motion; locking screw provides additional safety; zinc die-cast connecting parts |
|
Tube end(s): |
diameter 1.378", integrated threaded bush M10 for crossbars |
|
Type: |
black |
|
Weight: |
31.278 lbs |
