Item # 24169.000.55
SPEAKER WALL MOUNT, SUPPORTS SPEAKERS WITH FLANGE SOCKET UP TO 25 KG, SWIVEL RANGE: 120 DEGREES
Item # 24169.000.55
SPEAKER WALL MOUNT, SUPPORTS SPEAKERS WITH FLANGE SOCKET UP TO 25 KG, SWIVEL RANGE: 120 DEGREES
- UM: EA
- Brand: KONIG & MEYER

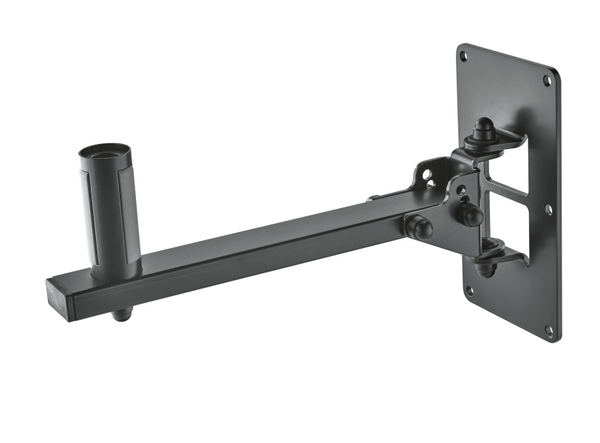

Robust wall mount for holding speakers with flange socket up to 25 kg. The swivel range is continuously adjustable up to 120°. The tilt can be fixed in three steps with 0°, -12.5° and -25°. A patented expanding mandrel ensures a wobble- and vibration-free fit of the speaker. The solid steel construction and durable powder coating ensure long-lasting use.
|

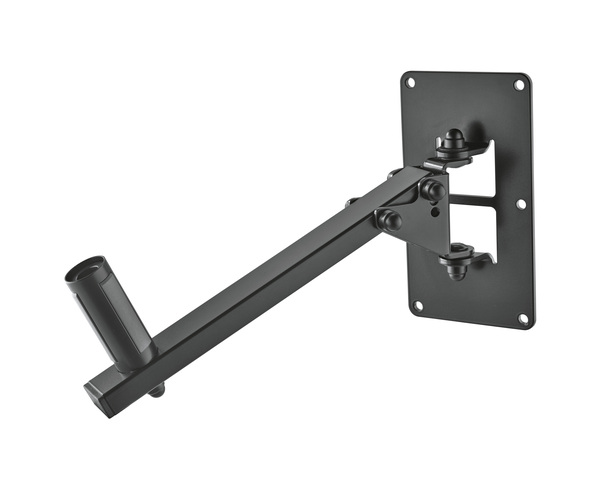

Angle of inclination: |
0° to -25° |
|
EAN: |
4016842119103 |
|
Material: |
steel |
|
Max. load capacity: |
25 kg |
|
Mounting: |
attaches to walls |
|
Mounting bolt: |
straddling bearing-anchors diameter 35 to 37 mm x 85 mm |
|
Special features: |
patented straddling bearing-anchors; guarantee effective clamping of speaker in any position |
|
Swivel: |
120 ° |
|
Type: |
black |
|
Wall clearance: |
359 mm |
|
Wall plate: |
220 x 120 mm |
|
Wall-to-bolt clearance: |
314 mm |
|
Weight: |
2 kg |
