Item # 172D043S10KXPCN0

PHC- 043 - SURGE SUPP MOD 2PAIR WIRE 43V

  • Call for Price
  • In Stock
  • Log in to see if custom discounts apply
  • Case Qty: 1

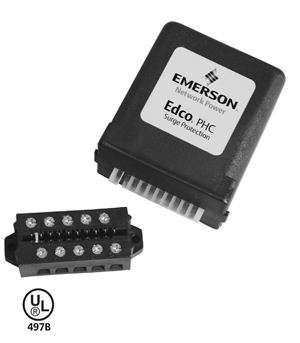

172D043S10KXPCN0 PHC- 043   -   SURGE SUPP MOD 2PAIR WIRE 43V
Click image to enlarge
172D043S10KXPCN0 PHC- 043   -   SURGE SUPP MOD 2PAIR WIRE 43V

Item # 172D043S10KXPCN0

PHC- 043 - SURGE SUPP MOD 2PAIR WIRE 43V

  • UM : EA
  • Estimated Weight: 0.3
  • Brand: EDCO / ASCO POWER

The ASCO Model 172 is designed to protect two pairs of wires specifically for alarm and security systems where operating currents can be as high as 5 Amps. Electrically, the Model 172 is a rugged series hybrid implementing a staged complement of MOVs, copper wound inductors and Silicon Avalanche Diodes. This design reduces series resistance to 0.2 ohms per pair. These products are intended to mate with a PCB1B gold-plated female terminal connector accessory.

FEATURES

  • Three-stage hybrid protection
  • Differential protection
  • Common mode protection
  • Plug-in module
  • Automatic recovery
  • Fast response time
  • Continuous current up to 5 Amps
  • Requires accessory PCB1B base
  • PTU (Pass Thru Unit) available for troubleshooting
  • 5 year warranty

Operating Voltage

12, 18, 24, 36, 52, 60, 120 VDC

Clamping Voltage

15, 20, 30, 43, 60, 70, 150 VDC

Operating Current

5 A

Peak Surge Current

10 kA (8 x 20 µs)

Frequency Range

0 to 10 MHz

Insertion Loss

< 0.1 dB at 10 MHz

SPD Technology

MOV, SAD, w/Series Inductor

Connection Type

Terminal block w/compression lugs, terminals accept up to 10 AWG

Operating Temperature

-40°C to +85°C

Dimensions (Inches)

3.7H x 1.75W x 2.375L (PHC + PCB1B Base – which is included)

Weight

8 oz

Certifications

UL 497B
