Item # 161-8
CONTEMPORARY WALL OR CEILING BAFFLE 8"
Click image to enlarge
Item # 161-8
CONTEMPORARY WALL OR CEILING BAFFLE 8"
- UM: EA
- Estimated Weight: 2.6
- Brand: ATLAS IED

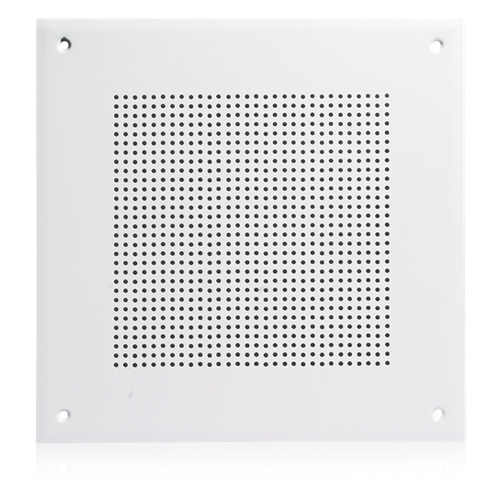

This attractive baffle is ideal for most interiors and may be used for recessed ceiling or recessed wall-mount installations. This model feature concealed speaker mounting studs and standard screw-mounting to enclosures, tile bridges or mounting rings. Model 161-8 accommodates standard 8" (203 mm) dia. speakers. Construction is one-piece, 20-gauge CRS and includes square "no leak" gasket. Finish is textured white epoxy
Features:
- Attractive Model Feature Concealed Loudspeaker Mounting Studs
- Heavy-Gauge CRS Construction Guards Against Vibration and Rattle
- Suitable for Multi-Purpose Ceiling and Wall-Mount Applications
| Mounts Speaker | 8"(20.32cm) |
|---|---|
| Height | 11 1/2" (29.21 cm) |
| Depth | 1/4" (0.635 cm) |
| Shipping Weight | 1.67 lbs (0.76 kgs) |
| Safety Listed | 1480 |
| Warranty Period | 60 months from date of purchase |
