Item # RCK-25

CASTER KIT FOR 25" DEEP 200 AND 500 SERIES RACKS

  • MAP: $209.99 / EA
  • List Price: $259.99 / EA
  • Usually ships in 3-7 days
  • Log in to see if custom discounts apply
RCK-25 CASTER KIT FOR 25" DEEP 200 AND 500 SERIES RACKS
Click image to enlarge
RCK-25 CASTER KIT FOR 25" DEEP 200 AND 500 SERIES RACKS

Item # RCK-25

CASTER KIT FOR 25" DEEP 200 AND 500 SERIES RACKS

  • UM : EA
  • Estimated Weight: 14.0
  • Brand: ATLAS IED

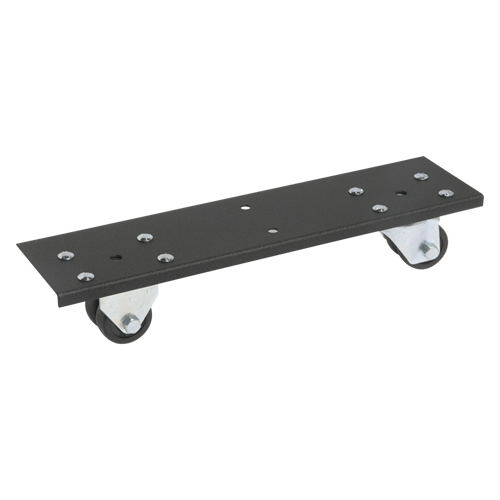

This caster kit is comprised of four, non-locking, 2 5/8" Dia. casters, and two, easy-to-install, mounting/support brackets. This Model accommodates the 25.5" deep 200/500 Series cabinets. The heavy-duty, 14-gauge CRS mounting/support brackets are 4" wide and are designed to be affixed beneath the cabinet's bottom panel for front-to-back reinforcement. Brackets are .075" thick and feature two 1/2" downward flange on the inner edge, which provides additional structural support to the cabinet bottom. The zinc-plated swivel casters, which have an overall height of 3.75", feature 2 5/8" hard rubber tread wheels. Supports a load capacity of up to 1000 lbs. Brackets and casters mount directly to cabinets using supplied hardware. When in place, increases the cabinet's overall height by 1.75". Brackets are finished in black.

FEATURES

  • 1000 Lb. Load Capacity Allows Maximum Equipment Installation
  • Caster Kits Allow Racks to be Ganged Together
  • Heavy-Duty Casters Enable "Easy-Roll" Movement
  • Provide Mobility for Atlas Sound 19" Wide x 25 1/2" Deep Cabinets

SPECIFICATIONS

HEIGHT

3 3/4" (9.525 cm)

WIDTH

4" (10.16 cm)

MOUNTS

25" Deep 200 & 500 Series

SHIPPING WEIGHT

14.00 lbs (6.24 kgs)
