Item # A710-TB

TILE BRIDGE FOR MXA710 - USE 1 BRIDGE TO MOUNT MXA710-2FT, OR 2 BRIDGES TO MOUNT MXA710-4FT

  • MAP: $107 / EA
  • List Price: $150.00 / EA
  • Usually ships in 3-7 days
  • Log in to see if custom discounts apply
  • Case Qty: 4
A710-TB TILE BRIDGE FOR MXA710 - USE 1 BRIDGE TO MOUNT MXA710-2FT, OR 2 BRIDGES TO MOUNT MXA710-4FT
A710-TB TILE BRIDGE FOR MXA710 - USE 1 BRIDGE TO MOUNT MXA710-2FT, OR 2 BRIDGES TO MOUNT MXA710-4FT
A710-TB TILE BRIDGE FOR MXA710 - USE 1 BRIDGE TO MOUNT MXA710-2FT, OR 2 BRIDGES TO MOUNT MXA710-4FT
Click image to enlarge
A710-TB TILE BRIDGE FOR MXA710 - USE 1 BRIDGE TO MOUNT MXA710-2FT, OR 2 BRIDGES TO MOUNT MXA710-4FT
A710-TB TILE BRIDGE FOR MXA710 - USE 1 BRIDGE TO MOUNT MXA710-2FT, OR 2 BRIDGES TO MOUNT MXA710-4FT
A710-TB TILE BRIDGE FOR MXA710 - USE 1 BRIDGE TO MOUNT MXA710-2FT, OR 2 BRIDGES TO MOUNT MXA710-4FT

Item # A710-TB

TILE BRIDGE FOR MXA710 - USE 1 BRIDGE TO MOUNT MXA710-2FT, OR 2 BRIDGES TO MOUNT MXA710-4FT

  • UM : EA
  • Estimated Weight: 6.0
  • Brand: SHURE

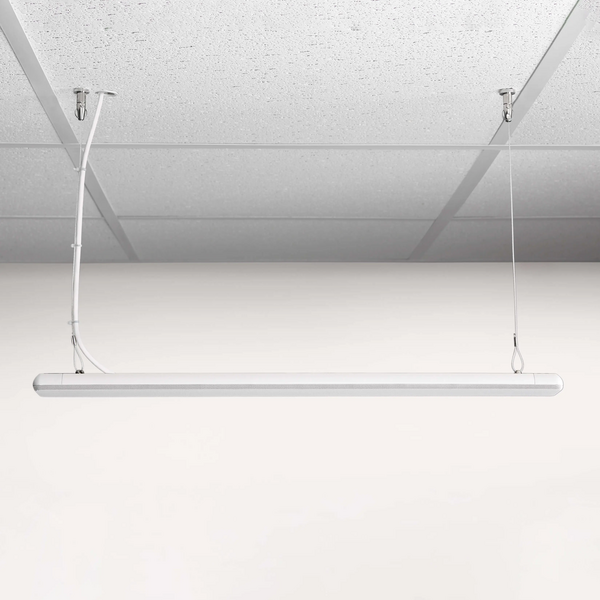

The A710-TB Tile Bridge Accessory allows for easy installation of the MXA710 Linear Array Microphone with drop ceiling grids. Mount the microphone directly to the ceiling tiles, or suspend the microphone from the grid using the included cables. Use 1 tile bridge to mount the MXA710-2FT, or 2 tile bridges to mount the MXA710-4FT. Each tile bridge has knockouts for cable routing and includes a hardware kit for both mounting options.

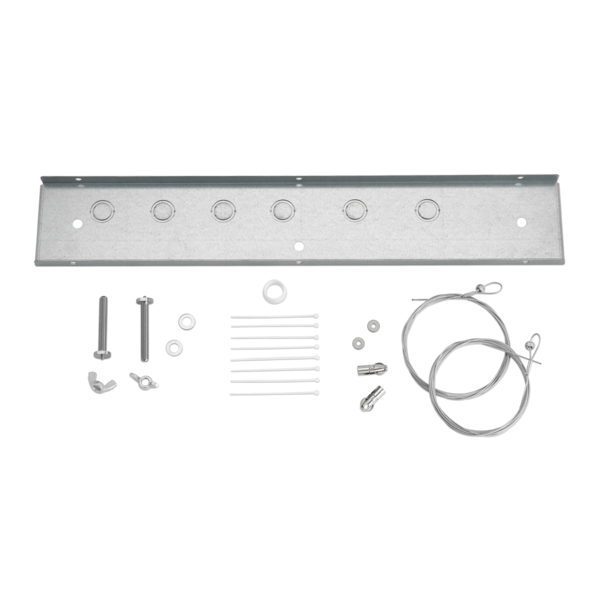

What's in the Box

  • Tile bridge (1)
  • Cable ties (8)
  • Gripple Angel Connector kit with:
    • Gripple Angel connectors (2)
    • M5 washers for suspension eyelets (2)
    • Wing nuts (2)
    • M10 washers for mounting bolts (2)
    • Mounting bolts (2)
    • Eyelets attached to 10 foot steel cables (2)
    • Finishing ring (1)



A710-TB Tile Bridge Accessory User Guide
