Item # SM82T-B

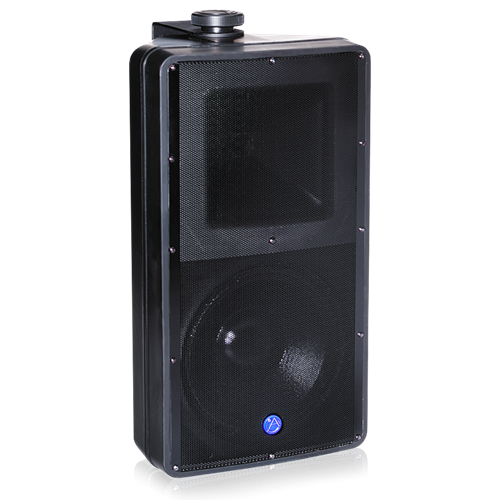

8" 2-WAY WEATHER RESISTANT SURFACE MOUNT SPEAKER WITH 70V/100V 60W TRANSFORMER & 8OHM BYPASS/BLACK
Click image to enlarge
Item # SM82T-B
8" 2-WAY WEATHER RESISTANT SURFACE MOUNT SPEAKER WITH 70V/100V 60W TRANSFORMER & 8OHM BYPASS/BLACK
- UM: EA
- Estimated Weight: 23.0
- Brand: ATLAS IED
The AtlasIED SM82T is a high-performance 8" 2-way all-weather speaker, designed to deliver powerful and clear audio in both indoor and outdoor environments. Featuring a 60-watt 70V/100V transformer, this speaker is ideal for commercial applications, including background music, paging systems, and public address installations. Its weather-resistant enclosure ensures durability in harsh conditions, making it perfect for stadiums, theme parks, patios, and other outdoor venues. The SM82T offers a wide frequency response and high output, providing excellent sound reproduction across various applications. With multiple mounting options, integrators can easily install this versatile speaker in any setting. Can be painted to accommodate any architectural considerations.
Features:
- 1" Exit Titanium High Frequency Compression Driver
- UL1480A Listed
- All ¼"-20 Hardware Inserts Allow Easy Integration of "Off-the-Shelf" Security Hardware
- Atlas Sound TRX WAVEGUIDE- A Constant Directivity Style High Frequency Wave Guide System Provides Accurate, Even High Frequency Coverage
- Compact, 2-way Loudspeaker Systems for Exceptional Performance in Music and Sound Reinforcement Systems
- Conforms to 100HR Salt Spray Test per ASTM B117
- Highly Efficient 8" HYCONET Treated Woofer
- POLYGUARD High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
- Screwdriver Adjustable 60 Watt 70.7V/100V Transformer for Distributed Sound Application.
- Weather-Resistant Construction for Year-Round Indoor or Outdoor Use: UV-Resistant, Talc Impregnated, Polypropylene, Injection Molded Enclosure, Powder Coated Aluminum Grilles and All Brass Hardware Inserts Color Matched Heavy-Duty Zinc Chromate Plated and Powder Coated "C" Bracket (Included)
- OMNIMOUNT Compatible
| Speaker Type | Surface Mount |
|---|---|
| Sensitivity | 92dB |
| Power Taps | 1.9, 3.8, 7.5, 15, 30, 60 & 8O bypass |
| Height | 16 1/2" (41.9 cm) |
| Width | 9 1/16" (23.0 cm) |
| Depth | 8 7/16 (21.4 cm) |
| Shipping Weight | 20.00 lbs (9.07 kgs) |
| Warranty Period | 60 months from date of purchase |
