Item # QS408
8" Q SERIES 1 CUBIC FT ENCLOSURE SQUARE
Click image to enlarge
Item # QS408
8" Q SERIES 1 CUBIC FT ENCLOSURE SQUARE
- UM: EA
- Estimated Weight: 26.0
- Brand: ATLAS IED

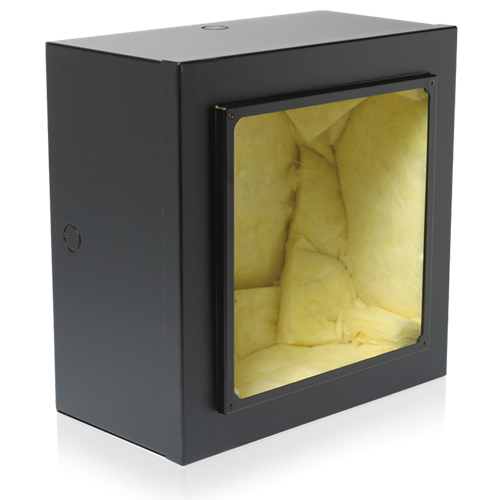

Model QS408 is a welded steel protective enclosure having a volume of 1 cu. ft. (.028m3). The interior is undercoated to eliminate metallic resonance and is furnished with 1 1/2" (38mm) thick fiberglass with a 1 1/2 lb./cu. ft. density. The large volume of this enclosure improves the low frequency response of the system while the fiberglass controls undesirable resonances in the high end of the frequency spectrum.
Features:
- 1Cubic Foot Capacity - Matches Well with 8CXT60 and FA138 Drivers
- High Performance Enclosure For 8" Loudspeakers
- Requires Baffle 164-8A (White) or Baffle 164-8A-052 (Black)
- Galvanized Steel Finish
| Speaker Size | 8" (20.32cm) |
|---|---|
| Baffle | 164-8A |
| Height | 15" (38.1 cm) |
| Depth | 8" (20.32 cm) |
| Shipping Weight | 8.66 lbs (3.93 kgs) |
| Warranty Period | 60 months from date of purchase |
