Item # MXN5W-C
5.25" WHITE CEILING DANTE LOUDSPEAKER (TILE BRIDGE SOLD SEPARATELY)
Item # MXN5W-C
5.25" WHITE CEILING DANTE LOUDSPEAKER (TILE BRIDGE SOLD SEPARATELY)
- UM: EA
- Estimated Weight: 11.0
- Brand: SHURE

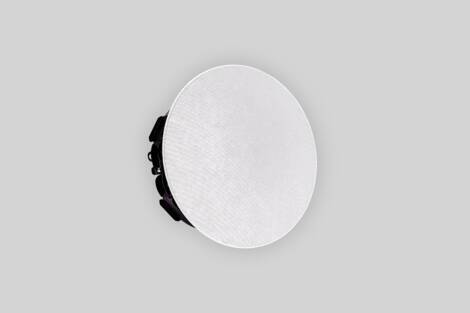

The Shure MXN5-C Microflex Networked Ceiling Loudspeaker provides high-quality speech reproduction for A/V conferencing applications. With a low-profile design optimized for easy installation in drop ceiling configurations, the MXN5 integrates seamlessly with other Shure networked PoE-enabled audio devices using the Dante audio networking protocol.
Features
Loudspeaker technical elements
- Pre-tuned frequency response optimized for voice intelligibility in A/V conferencing applications

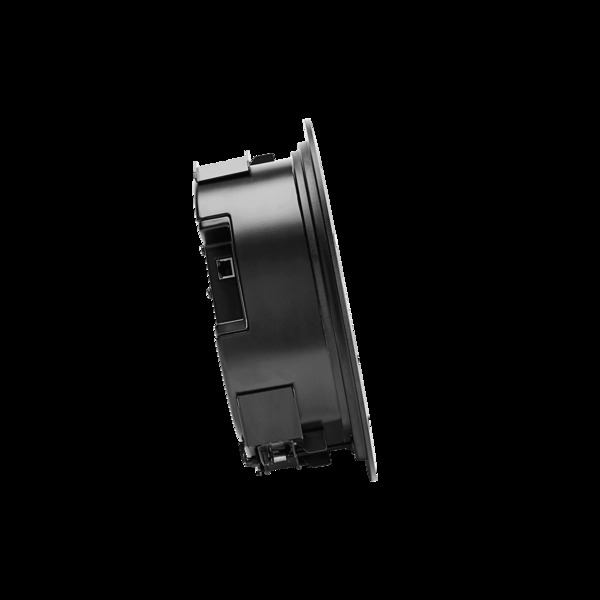

- Low-profile, shallow-can design compatible with most drop ceiling installations
- 2-way driver system with 5.25 inch woofer
- PoE/PoE+ enabled, eliminating the need for an outboard amplifier
- Integrated Shure DSP Utilities: EQ, delay, limiter, and signal/tone generator
- 2 Dante inputs and 1 Dante output
- AES67 compatible
Software-based configuration and control
- Shure Designer System Configuration software for easy setup and configuration
- SystemOn Audio Asset Management software for remote management and troubleshooting
- Shure network audio encryption
Clean design elements
- Aesthetic design subtly blends into drop ceiling environments

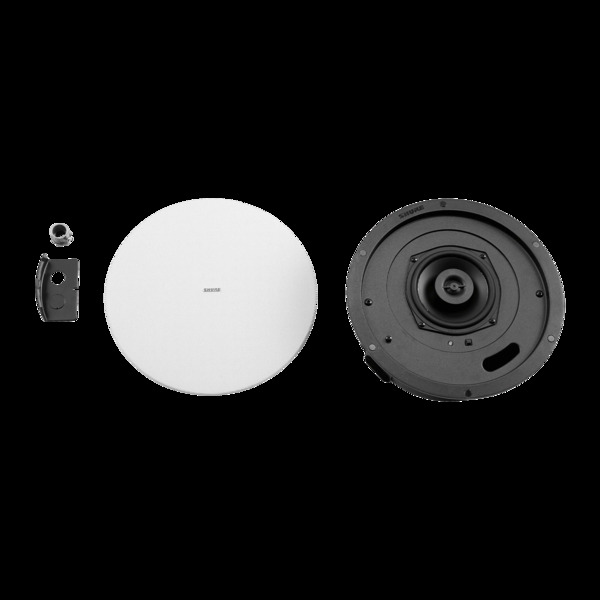

- Removable magnetic and paintable grille seamlessly covers the entire speaker
- Removable Shure logo
- UL 2043 plenum rated
- Tile bridge accessory for quick and easy mounting (sold separately)
Certification Required
|
Connector Type |
RJ45 |
|
Power Requirements |
Power over Ethernet (PoE) Class 0 or PoE Plus Class 4 |
|
Power Consumption |
Power over Ethernet (PoE):12 W maximum (11 W typical); PoE Plus: 24 W maximum (23 W typical) |
|
Weight |
6.5 lbs (2.95 kg) |
|
Product Dimensions |
12 x 12 x 4 in. (304.8 x 304.8 x 101.6 mm) H x W x D |
|
Control Software |
Shure Designer |
|
Plenum Rating |
UL 2043 (Suitable for Air Handling Spaces) |
|
Operating Temperature Range |
-6.7°C (20°F) to 40°C (104°F) |
|
Storage Temperature Range |
-29°C (-20°F) to 74°C (165°F) |
|
Frequency Response (-3 dB) |
120 Hz to 20 kHz |
|
Maximum Output Level (At 1 meter) |
Power over Ethernet (PoE): 92 dB SPL; PoE Plus:98 dB SPL |
|
Coverage Angle (Average of 1 octave band centered on 4 kHz) |
94° |
|
Digital Signal Processing |
Delay, Limiter, Signal Generator, Equalizer (4-band Parametric) |
|
Latency( Not including Dante latency) |
1.5 ms |
