Item # IF-AE16
AES/EBU INTERFACE FOR DA-6400
Click image to enlarge
Item # IF-AE16
AES/EBU INTERFACE FOR DA-6400
- UM: EA
- Estimated Weight: 1.0
- Brand: TASCAM

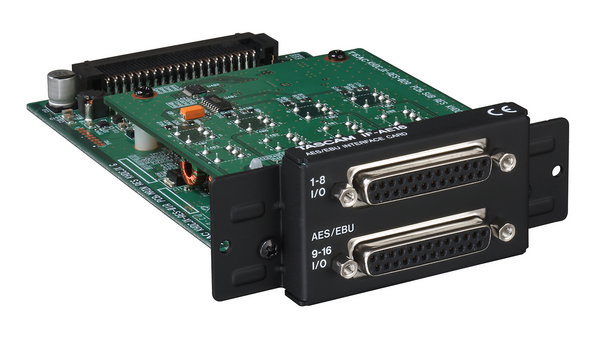

Supporting models : TASCAM Sonicview 24XP / TASCAM Sonicview 16XP / DA-6400 / DA-6400dp The IF-AE16 is an optional 16-in/16-out AES/EBU interface card for the TASCAM expansion slot system. The IF-AE16 will convert sampling rates for each input and supports virtually all sampling frequency rates.
Features:
- 16-in/16-out AES/EBU interface
- Built-in sampling rate converter for each input pair supporting 32k - 192kHz sampling rates * Settings can be made for each pair of channels

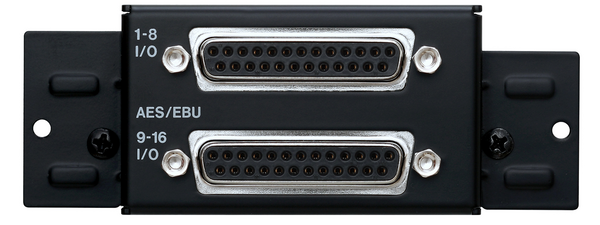

- Two D-sub 25pin connectors for channels 1-8 and 9-16
- S/PDIF also supported as an input data format
- Input/output connector pin assignments* conform to AES59-2012 * AES59-2012, used by many pro audio devices, utilizes the "TASCAM standard" pinout
- Compatible with the TASCAM Expansion Slot system
| Formats and channels | 16 channels at 44.1/48kHz, 24-bit 16 channels at 88.2/96kHz, 24-bit (double speed) |
|---|---|
| Connector | D-Sub 25-pin |
| Locking screws | No. 4-40 UNC (inch type) |
| Output format | AES3-2003/IEC60958-4 (AES/EBU) |
