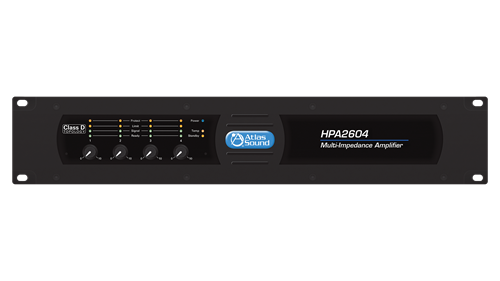

Item # HPA2604
4CH 2600W COMMERCIAL AMPLIFIER / 4 X 650W @ 70V/100V AND 4/8 OHM - 4-BALANCED INPUTS / 2RU
Click image to enlarge
Item # HPA2604
4CH 2600W COMMERCIAL AMPLIFIER / 4 X 650W @ 70V/100V AND 4/8 OHM - 4-BALANCED INPUTS / 2RU
- UM: EA
- Estimated Weight: 30.0
- Brand: ATLAS IED
The AtlasIED HPA2604 is a high-powered 4-channel commercial amplifier delivering a total output of 2600 watts, engineered for demanding professional AV installations. Designed for reliability, efficiency, and scalability, the HPA2604 supports low impedance (4?, 8?) and constant voltage (70V, 100V) outputs, offering maximum flexibility across a range of distributed audio systems. Each channel can operate independently or be bridged for higher power needs, and the amplifier’s advanced protection circuitry guards against overload, short circuit, DC, and thermal issues. With robust Class D topology, remote monitoring capabilities, and comprehensive front-panel status indicators, the HPA2604 is ideal for large-scale applications such as stadiums, convention centers, houses of worship, retail complexes, and educational institutions. Its rack-mountable 2RU design ensures easy integration, while its efficient operation minimizes power consumption and heat, making it a trusted solution for professional AV contractors and integrators.
Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED HPA Series is the answer for high power/cost effective amplification need.
Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED HPA Series is the answer for high power/cost effective amplification need.
Features:
- Four Output Channels
- 4O, 8O, 70V, & 100V Operation
- Balanced Inputs
- Dante Accessory Card Slot
- Fault Reporting
- Remote Turn On
- Detented Attenuators with Security Cover
- Auto Sensing 100V-240V~ AC Mains Power Supply
- Meets Energy Star Standards 1W Standby Mode
| 70.7V | 4 x 650W |
|---|---|
| 100V | 4 x 650W |
| 8O | 4 x 650W |
| 4O | 4 x 650W |
| 2O | NA |
| 8O Bridged | NA |
| 1O RMS Power Output | NA |
| Frequency Response | 20Hz - 20kHz |
| THD | <0.15% |
| Channels | Four |
| Signal to Noise Ratio | >70dB |
| Connector Type | Terminal Block & Phoenix |
| Number of Fans | 1 - Variable Speed |
| BTU All Channels Driven AES | 2132.5 BTU (70.7V, 120VAC) |
| Max Current All Channels Driven Continuous | 26.9A |
| Rack Units | 2 RU |
| Height | 3.5" (89mm) |
| Width | 19" (483mm) |
| Depth | 15" (381mm) |
| Voltage Compatibility | Universal |
| Weight | 22 lbs. (10kg) |
| Finish | Black |
| Warranty Period | 36 months from date of purchase |
Documents
×
