Item # PLE-1ME060-US
60W MIXER AMPLIFIER, 4 MICROPHONES AND 3 BACKGROUND MUSIC (BGM) INPUTS. US VERSION.
Item # PLE-1ME060-US
60W MIXER AMPLIFIER, 4 MICROPHONES AND 3 BACKGROUND MUSIC (BGM) INPUTS. US VERSION.
- UM: EA
- Estimated Weight: 19.0
- Brand: BOSCH

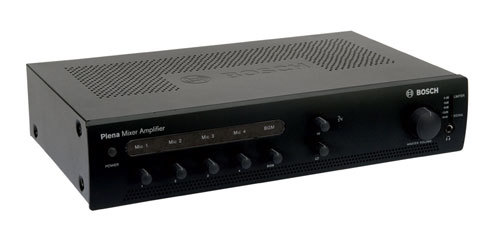

These Plena Economy mixer amplifiers are professional public address units with modern state of the art features. They are easy to use, taking the complexity away from the user and putting it where it belongs, inside the equipment. Providing a crisp call or clear music is as easy as turning on the radio. Offering the essentials of public address in an affordable package.
FEATURES
- 4 microphone / line inputs, plus music source input
- Announcement only output, 3-wire volume override
- Wide range of output power (60, 120 and 240 Watts)
- 2-tone chime
|
Color |
Gray |
|
Dimension (H x W x D) (mm) |
100 x 430 x 270 mm |
|
Frequency response (Hz) |
60 – 20000 Hz |
|
Headroom (dB) |
25 dB |
|
Maximum output power (W) |
60 W |
|
Maximum output voltage (V) |
15.50 V |
|
Minimum dynamic range (dB) |
93 dB |
|
Minimum signal-to-noise ratio (dB) |
63 dB |
|
Operating relative humidity, non-condensing (%) |
0 – 95 % |
|
Operating temperature (°C) |
-10 – 45 °C |
|
Power consumption (VA) |
200 VA |
|
Storage temperature (°C) |
-40 – 70 °C |
|
Weight (kg) |
6.50 kg |
